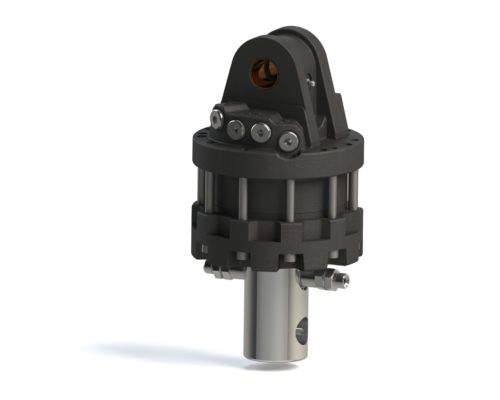

70500M-SS2 CRM 500-W30A30

5.5 ton rotator

Technical specifications
Rotation angleunlimited °
Max rotation pressure (R)200 bar
Max working pressure grapple open (GO) bar
Max working pressure grapple closed (GC) bar
Capacity465 cm3
Torque (250 bar)1400 Nm
Max axial load (static)55 kN
Max axial negative load (static) kN
Max axial load (dynamic)25 kN
Max axial negative load (dynamic) kN
Weight28 kg
ConnectionsG 3/8"
Connections bottom
Stud boltsM10
Stud bolts tightening torque81 Nm
Flange bolt
Flange bolt tightening torque Nm
Maximum oil flow20 lpm
Downloadable documents
Technical drawing pdf | 140.73 KB
