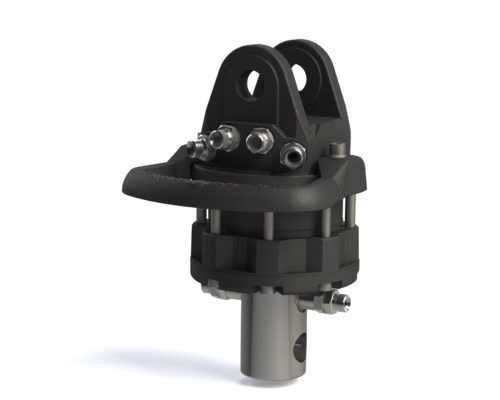

6 ton shaft rotator.
70602-333 CR 600-W35A35(D78)
| Technical specifications | |
| Rotation angle | unlimited ° |
| Max rotation pressure (R) | 250 bar |
| Max working pressure grapple open (GO) | 200 bar |
| Max working pressure grapple closed (GC) | 300 bar |
| Capacity | 670 cm3 |
| Torque (250 bar) | 1800 Nm |
| Max axial load (static) | 60 kN |
| Max axial negative load (static) | kN |
| Max axial load (dynamic) | 30 kN |
| Max axial negative load (dynamic) | kN |
| Weight | 36 kg |
| Connections | G 1/2" |
| Connections bottom | |
| Stud bolts | M12 |
| Stud bolts tightening torque | 125 Nm |
| Flange bolt | |
| Flange bolt tightening torque | Nm |
| Maximum oil flow | 20 lpm |
| Downloadable documents | |
| Technical drawing |
