CR 505SL-WU35F173(6)-222
ID: 70508LS-222

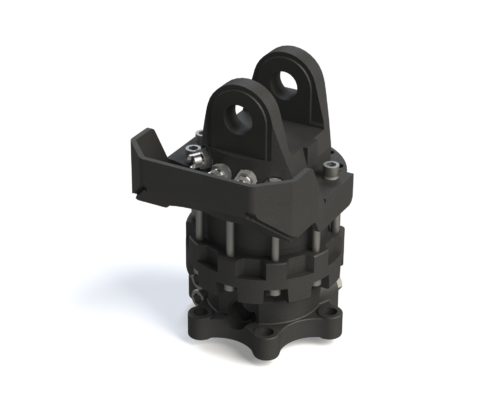

A 5,5 ton rotator with flange 6X173mm, fork type upper cover, high hose cover and BSP 3/8″ connectors
| Technical specifications | |
| Rotation angle | unlimited ° |
| Max rotation pressure (R) | 250 bar |
| Max working pressure grapple open (GO) | 200 bar |
| Max working pressure grapple closed (GC) | 300 bar |
| Capacity | 465 cm3 |
| Torque (250 bar) | 1400 Nm |
| Max axial load (static) | 55 kN |
| Max axial load (dynamic) | 25 kN |
| Weight | 32 kg |
| Connections | G 3/8" |
| Connections bottom | G 3/8" |
| Connectors | BSP 3/8" |
| Stud bolts | M10 |
| Stud bolts tightening torque | 81 Nm |
| Flange bolt | M16 |
| Flange bolt tightening torque | 400 Nm |
| Maximum oil flow | 20 lpm |
| Downloadable documents | |
| Technical drawing |
