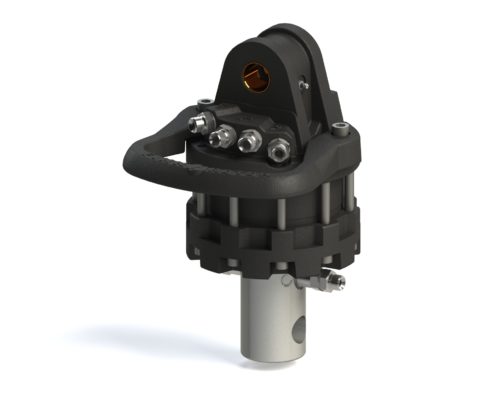

CR 500-W30A30

5,5 ton shaft rotator.

Technical specifications
Rotation angleunlimited °
Max rotation pressure (R)250 bar
Max working pressure grapple open (GO)200 bar
Max working pressure grapple closed (GC)300 bar
Capacity465 cm3
Torque (250 bar)1400 Nm
Max axial load (static)55 kN
Max axial load (dynamic)25 kN
Weight28 kg
ConnectionsG 3/8"
Stud boltsM10
Stud bolts tightening torque81 Nm
Maximum oil flow20 lpm
Downloadable documents
Technical drawing pdf | 203.64 KB
Leaflet CR A 2019 pdf | 1.90 MB
