CR 1100-M16F173-333
ID: 71170-333

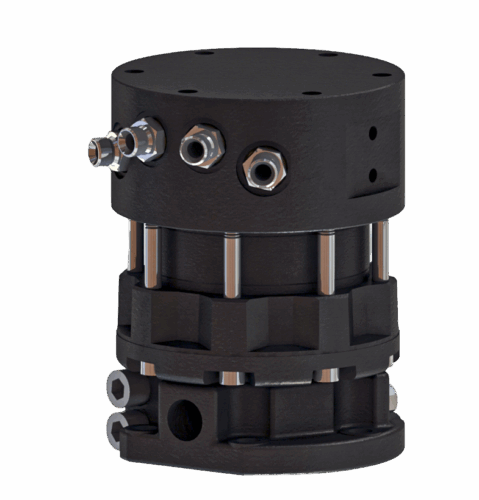

10 ton flat head rotator, F173 flange and BSP 1/2″ connectors. Including separate HG
| Technical specifications | |
| Rotation angle | unlimited ° |
| Max rotation pressure (R) | 250 bar |
| Max working pressure grapple open (GO) | 200 bar |
| Max working pressure grapple closed (GC) | 300 bar |
| Capacity | 810 cm3 |
| Torque (250 bar) | 2700 Nm |
| Max axial load (static) | 100 kN |
| Max axial load (dynamic) | 50 kN |
| Weight | 62 kg |
| Connections | G1/2 |
| Connections bottom | G1/2 |
| Connectors | BSP 1/2 |
| Stud bolts | M12 |
| Stud bolts tightening torque | 120 Nm |
| Flange bolt | M18 |
| Flange bolt tightening torque | 440 Nm |
| Maximum oil flow | 20 lpm |
