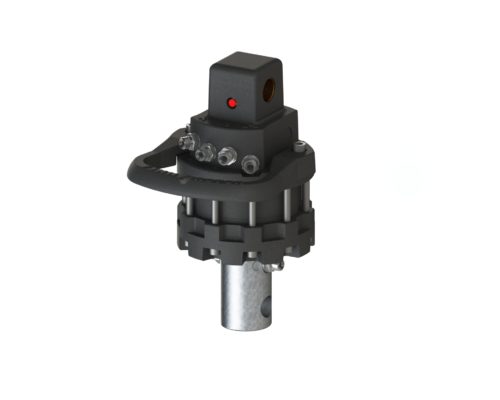

5.5 ton shaft rotator.
70555 FR 15c-X30A30
Technical specifications | |
Rotation angle | unlimited ° |
Max rotation pressure (R) | 250 bar |
Max working pressure grapple open (GO) | 200 bar |
Max working pressure grapple closed (GC) | 300 bar |
Capacity | 465 cm3 |
Torque (250 bar) | 1400 Nm |
Max axial load (static) | 55 kN |
Max axial load (dynamic) | 25 kN |
Weight | 31 kg |
Connections | G 3/8" |
Stud bolts | M10 |
Stud bolts tightening torque | 81 Nm |
Maximum oil flow | 20 lpm |
Downloadable documents | |
Technical drawing |
