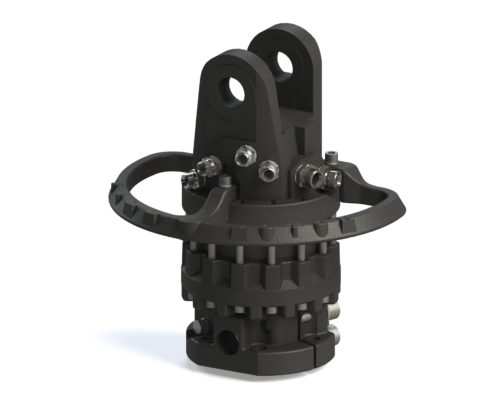

CRS 1200H-C4-W45F173 rotator with 4 oil channel.
| Technical specifications |
| Rotation angle | unlimited ° |
| Max rotation pressure (R) | 250 bar |
| Max working pressure grapple open (GO) | 300 bar |
| Max working pressure grapple closed (GC) | 300 bar |
| Capacity | 949 cm3 |
| Torque (250 bar) | 2900 Nm |
| Max axial load (static) | 120 kN |
| Max axial negative load (static) | -90 kN |
| Max axial load (dynamic) | 60 kN |
| Max axial negative load (dynamic) | -45 kN |
| Weight | 78 kg |
| Connections | G 1/2" |
| Connections bottom | |
| Stud bolts | M12 |
| Stud bolts tightening torque | 125 Nm |
| Flange bolt | M20 |
| Flange bolt tightening torque | 660 Nm |
| Maximum oil flow | 25 lpm |
