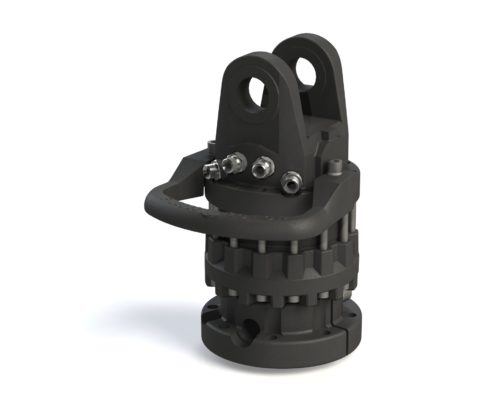

16 ton rotator with 2″ upper head and 2 x 204mm flange.
| Technical specifications |
| Rotation angle | unlimited ° |
| Max rotation pressure (R) | 250 bar |
| Max working pressure grapple open (GO) | 300 bar |
| Max working pressure grapple closed (GC) | 300 bar |
| Capacity | 1265 cm3 |
| Torque (250 bar) | 3600 Nm |
| Max axial load (static) | 160 kN |
| Max axial negative load (static) | -90 kN |
| Max axial load (dynamic) | 80 kN |
| Max axial negative load (dynamic) | -45 kN |
| Weight | 76 kg |
| Connections | G1/2" |
| Connections bottom | G1/2" |
| Stud bolts | |
| Stud bolts tightening torque | Nm |
| Flange bolt | |
| Flange bolt tightening torque | Nm |
| Maximum oil flow | 30 lpm |
