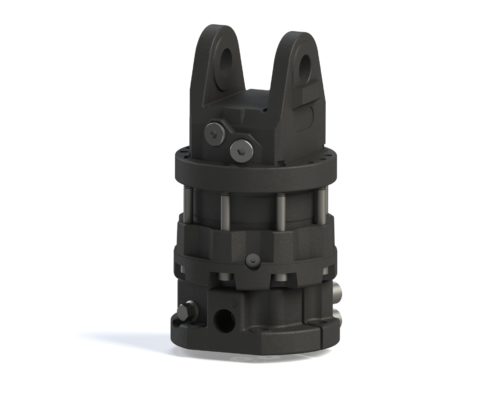

8 ton rotator for harvester
| Technical specifications |
| Rotation angle | unlimited ° |
| Max rotation pressure (R) | 200 bar |
| Max working pressure grapple open (GO) | bar |
| Max working pressure grapple closed (GC) | bar |
| Capacity | 670 cm3 |
| Torque (250 bar) | 2000 Nm |
| Max axial load (static) | 80 kN |
| Max axial negative load (static) | -40 kN |
| Max axial load (dynamic) | 40 kN |
| Max axial negative load (dynamic) | -20 kN |
| Weight | 50 kg |
| Connections | G 1/2" |
| Connections bottom | |
| Stud bolts | M12 |
| Stud bolts tightening torque | 125 Nm |
| Flange bolt | M20 |
| Flange bolt tightening torque | 660 Nm |
| Maximum oil flow | 25 lpm |
