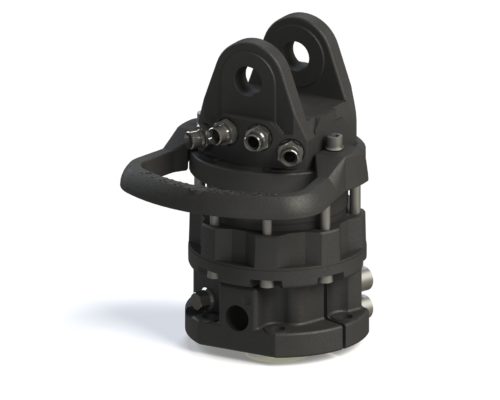

CR 600-W35F173

A 6 ton 6×173 flange rotator

Technical specifications
Rotation angleunlimited °
Max rotation pressure (R)250 bar
Max working pressure grapple open (GO)200 bar
Max working pressure grapple closed (GC)300 bar
Capacity670 cm3
Torque (250 bar)1800 Nm
Max axial load (static)60 kN
Max axial load (dynamic)30 kN
Weight48 kg
ConnectionsG1/2"
Stud boltsM12
Stud bolts tightening torque125 Nm
Flange boltM18
Flange bolt tightening torque440 Nm
Required oil flow20 lpm
Downloadable documents
Technical drawing pdf | 177.04 KB
Leaflet CR F 2019 pdf | 594.12 KB
