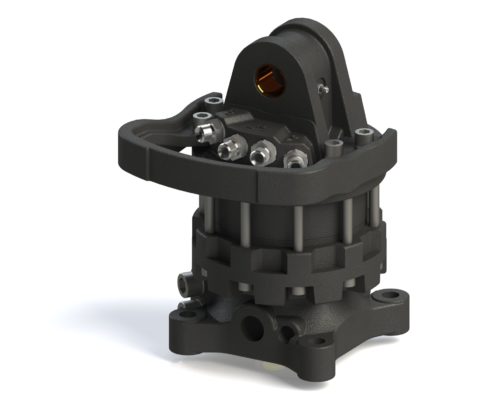

5.5 ton rotator with 4×140 flange
| Technical specifications |
| Rotation angle | unlimited ° |
| Max rotation pressure (R) | 250 bar |
| Max working pressure grapple open (GO) | 200 bar |
| Max working pressure grapple closed (GC) | 300 bar |
| Capacity | 465 cm3 |
| Torque (250 bar) | 1400 Nm |
| Max axial load (static) | 55 kN |
| Max axial negative load (static) | kN |
| Max axial load (dynamic) | 25 kN |
| Max axial negative load (dynamic) | kN |
| Weight | 35 kg |
| Connections | G 3/8" |
| Connections bottom | |
| Stud bolts | M10 |
| Stud bolts tightening torque | 81 Nm |
| Flange bolt | M16 |
| Flange bolt tightening torque | 400 Nm |
| Maximum oil flow | 20 lpm |
