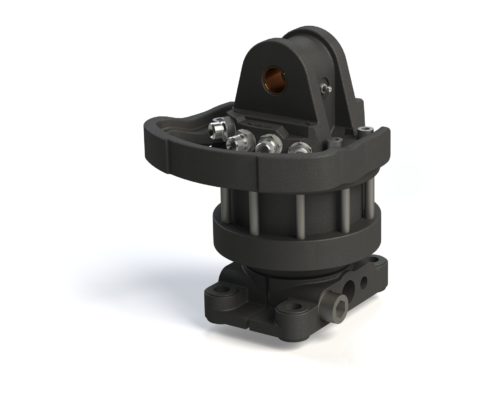

4 ton rotator with 6×173 bolt connection (4 bolts).
| Technical specifications |
| Rotation angle | unlimited ° |
| Max rotation pressure (R) | 250 bar |
| Max working pressure grapple open (GO) | 200 bar |
| Max working pressure grapple closed (GC) | 300 bar |
| Capacity | 420 cm3 |
| Torque (250 bar) | 1100 Nm |
| Max axial load (static) | 40 kN |
| Max axial negative load (static) | kN |
| Max axial load (dynamic) | 20 kN |
| Max axial negative load (dynamic) | kN |
| Weight | 28 kg |
| Connections | |
| Connections bottom | |
| Stud bolts | |
| Stud bolts tightening torque | Nm |
| Flange bolt | |
| Flange bolt tightening torque | Nm |
| Maximum oil flow | 20 lpm |
