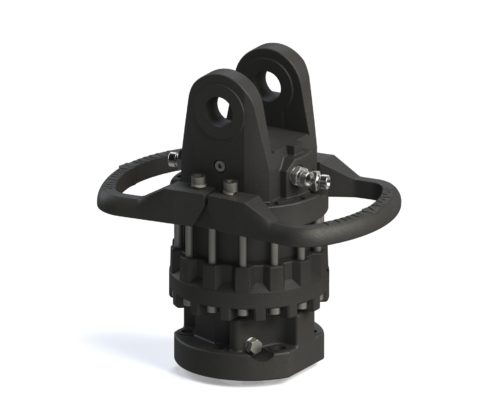

CRH 1200-X45F173

A 12 ton flange 6×173 rotator.

Technical specifications
Rotation angleunlimited °
Max rotation pressure (R)300 bar
Max working pressure grapple open (GO)300 bar
Max working pressure grapple closed (GC)300 bar
Capacity949 cm3
Torque (250 bar)2900 Nm
Max axial load (static)120 kN
Max axial negative load (static)-90 kN
Max axial load (dynamic)60 kN
Max axial negative load (dynamic)-45 kN
Weight79 kg
Required oil flow25 lpm
