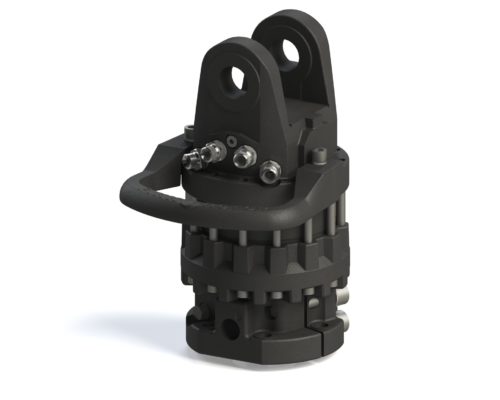

CRH 1200-W45F173

12 ton double bearing rotator.

Technical specifications
Rotation angleunlimited °
Max rotation pressure (R)250 bar
Max working pressure grapple open (GO)300 bar
Max working pressure grapple closed (GC)300 bar
Capacity949 cm3
Torque (250 bar)2900 Nm
Max axial load (static)120 kN
Max axial negative load (static)-90 kN
Max axial load (dynamic)60 kN
Max axial negative load (dynamic)-45 kN
Weight76 kg
ConnectionsG 1/2"
Stud boltsM12
Stud bolts tightening torque125 Nm
Flange boltM20
Flange bolt tightening torque660 Nm
Maximum oil flow25 lpm
