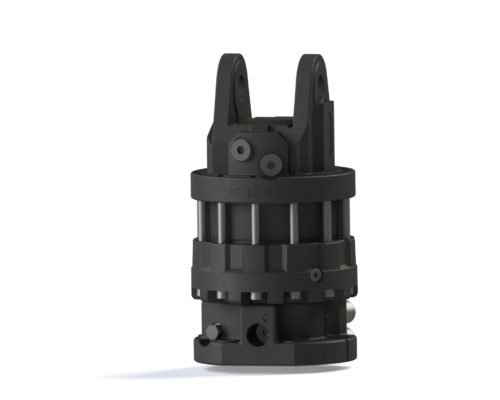

CRM 1000H-X35F173

10 ton rotator for harvester.

Technical specifications
Rotation angleunlimited °
Max rotation pressure (R)200 bar
Capacity810 cm3
Torque (250 bar)2700 Nm
Max axial load (static)100 kN
Max axial negative load (static)-80 kN
Max axial load (dynamic)50 kN
Max axial negative load (dynamic)-40 kN
Weight61 kg
ConnectionsG 1/2"
Stud boltsM12
Stud bolts tightening torque125 Nm
Flange boltM20
Flange bolt tightening torque660 Nm
Maximum oil flow25 lpm
Downloadable documents
Technical drawing pdf | 136.02 KB
Leaflet CR M 2019 pdf | 654.07 KB
